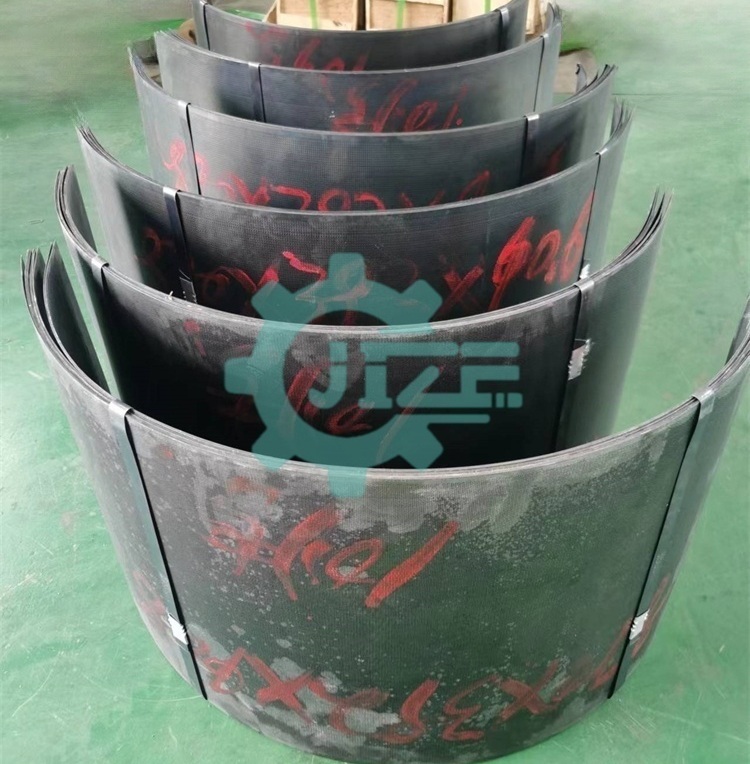

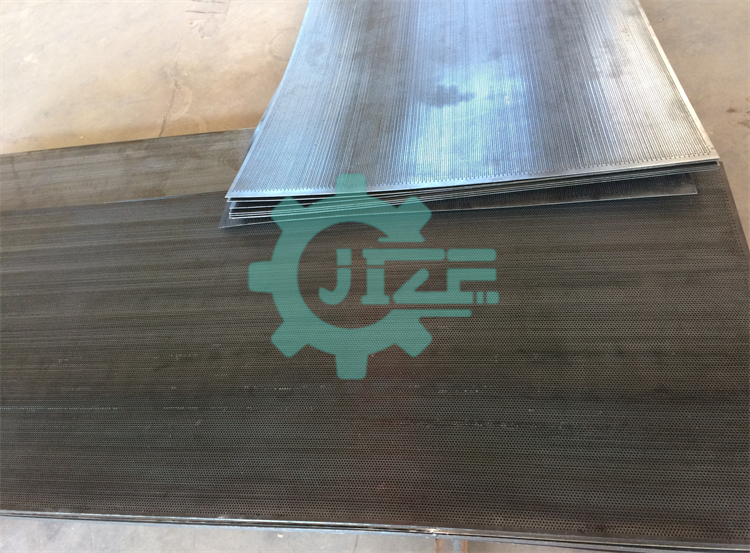

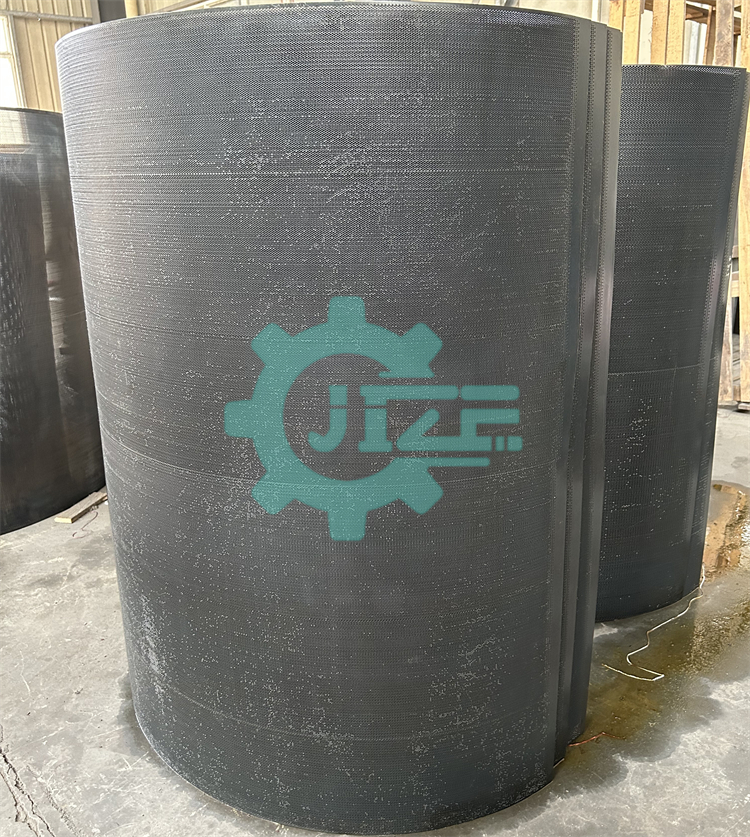

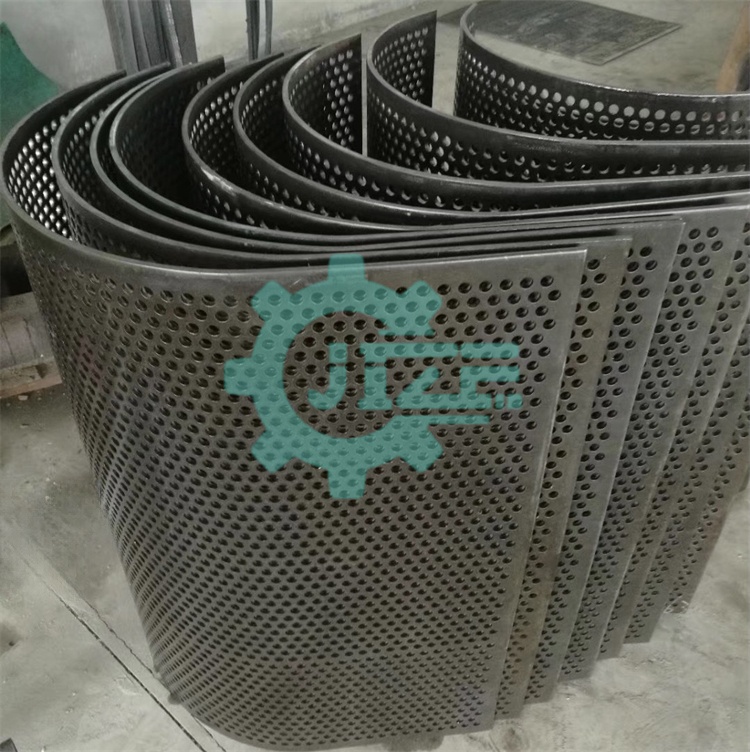

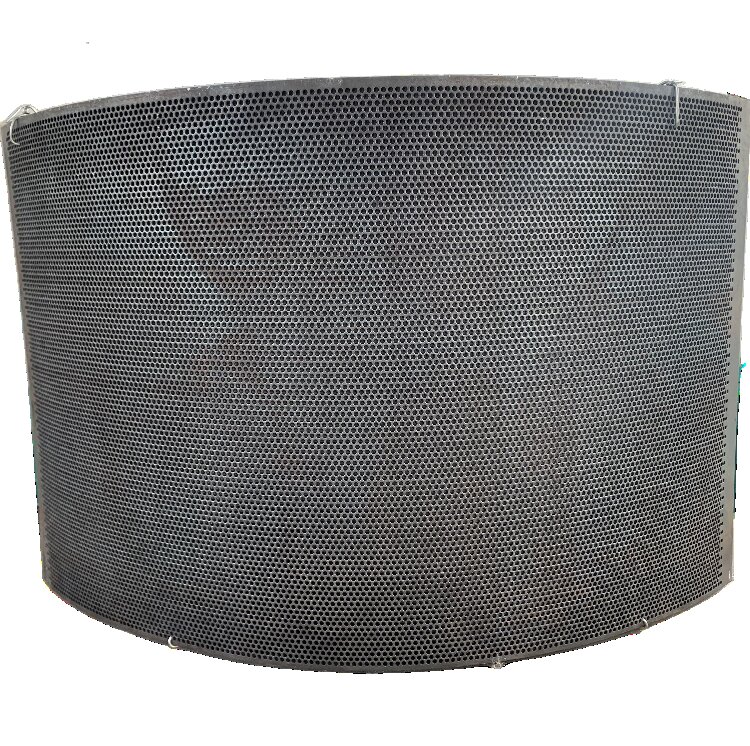

Hammer mill screen
Name: hammer mill screen, hammer mill spare parts, hammer screen, screen, hammer mill sieve
Raw material: Q235 steel plates(with heat treatment), stainless steel plates
Opening area: 20%-60%

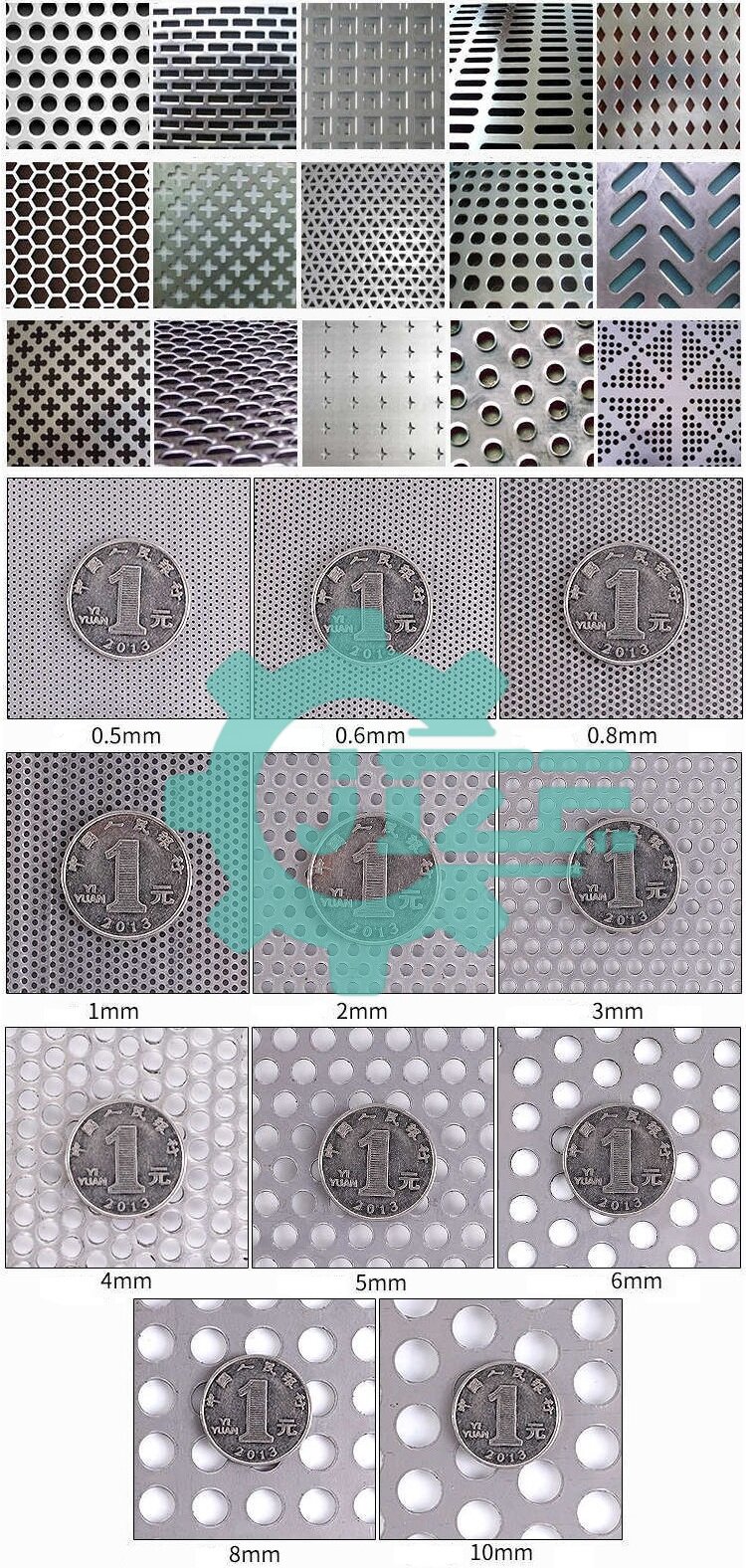

Hole diameter: Ø0.5mm-Ø20mm
Thickness: 0.5mm-10mm
|
Thickness(mm)
|
Hole Diameter(mm)
|
Hole Area Ratio
|
Hole Diameter
Tolerance
|
Hole Centre Distance Tolerance
|
|
1.0
|
1.0
|
20%
|
±0.05
|
±0.12
|
|
1.2
|
30%
|
±0.05
|
±0.15
|
|
1.2
|
1.2
|
30%
|
±0.05
|
±0.15
|
|
1.5
|
33%
|
±0.05
|
±0.15
|
|
1.5
|
1.5
|
35%
|
±0.06
|
±0.15
|
|
2.0
|
38%
|
±0.06
|
±0.15
|
|
1.8
|
1.8
|
40%
|
±0.06
|
±0.15
|
|
2.5
|
48%
|
±0.06
|
±0.15
|
|
2.0
|
2.0
|
42%
|
±0.06
|
±0.15
|
|
2.2
|
45%
|
±0.07
|
±0.17
|
|
2.5
|
48%
|
±0.07
|
±0.17
|
|
3.0
|
52%
|
±0.07
|
±0.17
|
|
3.2
|
55%
|
±0.07
|
±0.17
|
|
3.5
|
58%
|
±0.07
|
±0.17
|
|
4.0
|
60%
|
±0.07
|
±0.17
|
Punching machine:
|
